GW1114 Series
Desktop/Wall Mounting
4 RS-485 + 2 100M Ethernet Ports Modbus Gateway
- Support 4 RS-485 serial ports to 2 10/100Base-T(X) self-adaptive Ethernet interfaces
- Support conversion between Modbus RTU/ASCII and Modbus TCP protocol
- Support RTU Master, RTU Slave, ASCII Master, ASCII Slave and other operating modes
- Support virtual and real ID mapping to achieve flexible access between Master and Slave devices
- Support network modes such as redundant mode, switching mode and dual IP mode to meet the needs of various network environments
- Support 12~48VDC wide voltage input range
- Support -40~75℃ wide operating temperature range

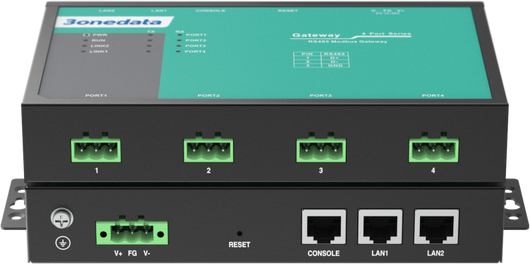

GW1114-4DI(RS-485)-TB-P(12-48VDC) is Modbus gateway designed for integrating Modbus RTU/ASCII and Modbus TCP networks; it can achieve the conversion between Modbus RTU/ASCII and Modbus TCP protocols. This product supports 4 RS-485 serial ports to 2 10/100Base-T(X) self-adaptive Ethernet port. It adopts desktop/wall mounting to meet the requirements of different application scenes.
Modbus gateway supports multiple network protocols, such as Modbus, TCP, IP, UDP, TELNET, ARP, ICMP, HTTP, HTTPS, SNMP, SSH，SMTP, SNTP，DNS and DHCP protocols. It possesses complete management function, and supports access control, rapid configuration, online upgrading, etc. RTU Master, RTU Slave, ASCII Master, ASCII Slave and other operating modes are supported; it supports up to 256 Modbus TCP client (master) accesses and connects up to 128 Modbus TCP server (slave) devices. TELNET, WEB, SSHD and other access modes are also supported. Network management system could bring you great user experience through its friendly interface design and easy and convenient operation.
RESET button can achieve the restore factory defaults function. Each RS-485 serial port of the device is equipped with an exclusive isolation component, which can effectively avoid the impact of electromagnetic interference. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in PLC control and management, Building Automation System, Health Care Automation System, measuring instrument and environmental forces monitoring system.
| Ethernet | Standard: 10Base-T, 100Base-TX Protocol: Modbus TCP, TCP, IP, UDP, ARP, HTTP, TELNET, SNMP, ICMP, DHCP, DNS Rate: 10/100M Automatic Flow Control, MDI/MDI-X Autotunning Interface quantity: 2 Interface form: RJ45 Duplex mode: Full/Half Duplex Mode Self-adaption |
| Serial Port | Standard: EIA RS-485 Quantity of serial port: 4 RS-485 serial ports RS-485 signal: D+, D-, GND Baud rate: 110bps-15200bps (customizable110bps-921600bps) Data bit: 7bit, 8bit Parity bit: None, Even, Odd, Space, Mark Stop bit: 1bit, 2bit Interface form: 3-pin 5.08mm pitch terminal blocks Direction control: RS-485 direction adopts Automatic Data Direction Control (ADDC) Load capacity: RS-485 supports 32 points polling (customizable 256 points) Transmission distance: RS-485, 1200m Pull up/down resistor for RS-485: 4.7kΩ Electromagnetic isolation strength: 3kVDC/2KVrms Operating mode: RTU Master, RTU Slave, ASCII Master and ASCII Slave Connection quantity: support up to 256 Modbus TCP client (master) accesses and connect up to 128 Modbus TCP server (slave) devices. |
| Console Port | CLI command line management port (RS-232), RJ45 |
| Configuration Method | WEB configuration management, TELNET configuration, Windows configuration tool, SSHD configuration |
| Security | User right classification, IP address filtering, MAC address filtering, SNMP/ Mail /System Log alarm, HTTP/HTTPS/SSHD/TELNET access control |
| Indicator | Power supply indicator, Ethernet port indicator, serial port indicator, running indicator |
| Power Supply | This device provides 12~48VDC power supply which is 3-pin 5.08mm pitch terminal block, the power supply supports non-polarity connection. |
| Power Consumption | No-load: 1.7W@12VDC Full-load: 1.9W@12VDC (high temperature) |
| Working Environment | Operating temperature: -40~75℃ Storage temperature:-40~85℃ Relative humidity: 5%~5% (no condensation) |
| Physical Characteristic | Housing: IP40 protection, metal Installation: Desktop and Wall Mounting Dimension (W x H x D): 170mm×30mm×110mm (lugs are not included) Weight: 0.52kg |
| Industrial Standard | IEC 61000-4-2 (ESD, electrostatic discharge), Level 3 l Air discharge:± 8kV l Contact discharge: ±6kV
IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 3 l Signal: ±1kV
IEC 61000-4-5 (Surge), Level 3 l Power supply: common mode±2kV, differential mode±1kV l Signal: common mode ±2kV, differential mode ±1kV
Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
| Authentication | CE, FCC, RoHS |
| Warranty | 3 years |
| Available Models | 100M Copper Port | RS-485 | Power Supply |
| GW1114-4DI(RS-485)-TB-P(12-48VDC) | 2 | 4 | 12~48VDC |
