IAP3300 Series

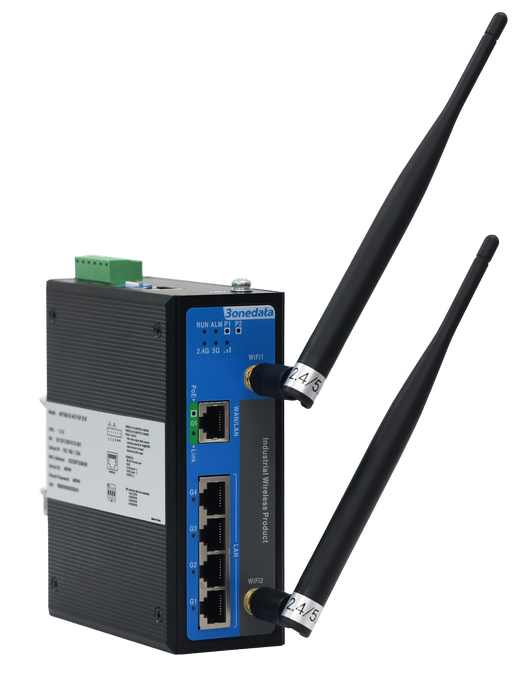

DIN-Rail or Wall Mounting Industrial Indoor Dual Band WiFi6 Wireless AP
- Support two 2.4G/5G antenna interfaces, 4 Gigabit RJ45 ports (LAN) and 1 Gigabit PoE RJ45 port (LAN/WAN)
- Support WiFi6 (802.11ax), which can improve system capacity and concurrent access, and reduce transmission delay.
- Support multiple network modes such as routing, AP, bridge and client mode.
- Support IEEE802.3at/af PoE power supply input and 12~48VDC power supply input
- Support -40~75℃ wide operating temperature range
IAP3300-2E-4GT1GP-2LVI is 5-port full Gigabit industrial indoor dual band WiFi6 Wireless AP, the PoE power supply conforms to IEEE802.3af/at protocol standard. This product provides 2.4G/5G combined antenna interface, Gigabit RJ45 port (LAN) and Gigabit PoE RJ45 port (LAN/WAN) and other interfaces, and supports DIN-rail or wall mounting, which can meet the needs of different application sites.
The management system supports route, AP, bridge, client and other work modes; Support IEEE802.11a/b/g/n/ac/ax wireless technology, the wireless rate of the whole device is up to 1774.5Mbps; The device supports wireless encryption methods such as WPA/WPA2/WPA3, and has various security policies such as SSID hiding, wireless user isolation, IP address filtering, MAC address filtering, port forwarding, port redirection, ARP binding, DMZ setting, etc. Support virtual AP, that is, one AP device supports multiple SSIDs.
DIP switch can achieve restore factory defaults of the device. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. All components are industrial grade with protection grade of IP40. It can be widely used in the scenes such as AGV cars, industrial robots, intelligent warehousing in factory automation, petrochemical industry, power monitoring and so on.
| Standard & Protocol | IEEE 802.3 for 10Base-T IEEE802.3u for 100Base-TX IEEE 802.3ab for 1000Base-T IEEE802.11a/b/g/n/ac/ax for WLAN IEEE802.11i for wireless security IEEE802.11r for fast roaming IEEE802.11e for WWM IEEE802.3af for PoE IEEE802.3at for PoE+ |
| Working Mode | Routing mode (WAN:PPPoE dial-up, static IP, DHCP dynamic IP acquisition) AP mode (LAN: static IP, DHCP dynamically acquiring IP) Bridge mode (connection: WDS bridge, universal bridge; point-to-point, roaming) Client mode (connection: WDS bridge, universal bridge, wireless NAT; point-to-point, roaming) |
| WLAN | WAP/WAP2/WAP3 personal/enterprise edition encryption mode, hidden wireless SSID, wireless user isolation, wireless transmission power adjustment, maximum user limit, packet segmentation and RTS threshold, China/US wireless channel, WMM |
| Management | Intranet settings, extranet settings, wireless settings, AC management, SNMP management, QoS management, AP roaming control, roaming agent, user settings, system upgrade, timed restart, profile update, system log, wireless user list, and Wi-Fi real-time traffic monitoring, log management, time settings, access settings and diagnostic Tools |
| Security Policy | Wireless user black/white list, wireless user event notice, IP filtering, MAC filtering, URL filtering, port forwarding, port redirection, ARP binding, DMZ settings, access settings |
| Routing/switching | Static routing (routing mode, wireless NAT) |
| Location Service | Wireless probe |
| Trouble Shooting | Network detection, Ping test, route tracing |
| Time Management | NTP Client |
| Radio Frequency | 802.11B/g/n: 2.412GHz~2.4835GHz 802.11Ac/n/a: 5.18GHz~5.825GHz RF power output: 27dBm Modulation methods: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM |
| Receiving Sensitivity | 802.11b: -87dBm@1Mbps,-76dBm@11Mbps 802.11g/a: -82dBm@6Mbps,-65dBm@54Mbps 802.11n: -82dBm@MCS0,-64dBm@MCS7 802.11ac: -82dBm@MCS0,-57dBm@MCS9 802.11ax: -82dBm@MCS0,-52dBm@MCS11 |
| Transmitting Power | 802.11b: 24dBm@1Mbps,20dBm@11Mbps 802.11g/a: 24dBm@6Mbps,20dBm@54Mbps 802.11n: 24dBm@MCS0,20Bm@MCS7 802.11ac: 24dBm@MCS0,20Bm@MCS9 802.11ax: 24dBm@MCS0,20Bm@MCS11 |
| Interface | Gigabit RJ45 port (LAN): 4 10/100/1000Base-T(X) self-adaptive RJ45 LAN port, support automatic flow control, full/half duplex mode, MDI/MDI-X self-adaption Gigabit RJ45 port (LAN/WAN): 1 10/100/1000Base-T(X) self-adaptive RJ45 LAN/WAN port, supports automatic flow rate control, full/half duplex, MDI/MDI-X self-adaption; supports IEEE802.3af/at standard PoE power input Antenna interfaces: 2 2.4/5G combined antenna interfaces, adopting RPSMA-K connector Console port: CLI command management port(RS-232) Relay (Reserved): one relay output, and adopts 6-pin 5.08mm pitch terminal blocks, with the relay occupying two pins |
| Power Supply | Gigabit PoE RJ45 port: supports IEEE802.3af/at standard, PoE 48VDC power input Power supply terminal: 12~48VDC power input, support non-polarity, using 6-pin 5.08mm pitch terminal blocks, with power supply occupies 4 pins |
| Indicator | Running indicator, alarm indicator, power indicator, 2.4G indicator, 5.8G indicator, 2.4G/5G bridge signal strength indicator, WAN indicator, LAN indicator, PoE indicator |
| Power Consumption | l Normal temperature No-load 9.2w@12VDC, 8.3w@24VDC, 8.2w@36VDC, 8.8w@48VDC l Normal temperature full load 21.6w@12VDC, 18.0w@24VDC, 19.0w@36VDC, 18.7w@48VDC l High temperature full load 22.3w@12VDC, 19.0w@24VDC, 18.7w@36VDC, 18.9w@48VDC |
| Working Environment | Operating temperature: -40~75℃ Storage temperature:-40~85℃ Relative humidity: 5%～95%(no condensation) |
| Physical Characteristic | Housing: IP40 protection grade Installation: DIN-Rail or wall mounting Dimension (W x H x D): 53mm×138mm×110mm Weight: 741g |
| Industrial Standard | IEC 61000-4-2 (ESD, electrostatic discharge), Level 4 l Air discharge:± 15kV l Contact discharge: ±8kV
IEC 61000-4-4 (EFT, electrical fast transient), Level 4 l Ethernet interface: ±2kV
IEC 61000-4-5 (Surge), Level 4 l Power supply: common mode±4kV, differential mode±2kV l Ethernet interface: ±4kV
Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
| Authentication | CE, FCC, RoHS |
| Warranty | 5 years |
| Standard & Protocol | IEEE 802.3 for 10Base-T IEEE802.3u for 100Base-TX IEEE 802.3ab for 1000Base-T IEEE802.11a/b/g/n/ac/ax for WLAN IEEE802.11i for wireless security IEEE802.11r for fast roaming IEEE802.11e for WWM IEEE802.3af for PoE IEEE802.3at for PoE+ |
| Working Mode | Routing mode (WAN: PPPoE dial-up, static IP, DHCP dynamic IP acquisition) AP mode (LAN: static IP, DHCP dynamically acquiring IP) Bridge mode (connection: WDS bridge, universal bridge; point-to-point, roaming) Client mode (connection: WDS bridge, universal bridge, wireless NAT; point-to-point, efficient roaming) Dual-link mode (connection: WDS bridge, Dual-universal bridge, Dual-wireless NAT; Seamless roaming) |
| WLAN | WAP/WAP2/WAP3 personal/enterprise edition encryption mode, hidden wireless SSID, wireless user isolation, wireless transmission power adjustment, maximum user limit, RTS threshold, China/US wireless channel, WMM |
| Management | System state, network status, wireless state, device state, ARP table, routing table, intranet settings, extranet settings, wireless settings, AC management, SNMP management, QoS management, AP roaming control, roaming agent, user settings, system upgrade, timed restart, profile update, system log, wireless user list, and Wi-Fi real-time traffic monitoring, log management, time settings, access settings and diagnostic tools |
| Security Policy | Wireless user black/white list, wireless user event notice, IP filtering, MAC filtering, URL filtering, port forwarding, port redirection, ARP binding, DMZ settings, access settings |
| Routing/Switching | Static routing (routing mode, wireless NAT) |
| Location Service | Wireless probe |
| Troubleshooting | Network detection, Ping test, route tracing |
| Time Management | NTP Client |
| Radio Frequency | 802.11b/g/n/ax: 2.412GHz~2.4835GHz 802.11a/n/ac/ax: 5.18GHz~5.825GHz RF power output: 27dBm Modulation methods: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM |
| Receiving Sensitivity | 802.11b: -87dBm@1Mbps, -76dBm@11Mbps 802.11g/a: -82dBm@6Mbps, -65dBm@54Mbps 802.11n: -82dBm@MCS0, -64dBm@MCS7 802.11ac: -82dBm@MCS0, -57dBm@MCS9 802.11ax: -82dBm@MCS0, -52dBm@MCS11 |
| Transmitting Power | 802.11b: 24dBm@1Mbps, 20dBm@11Mbps 802.11g/a: 24dBm@6Mbps, 20dBm@54Mbps 802.11n: 24dBm@MCS0, 20Bm@MCS7 802.11ac: 24dBm@MCS0, 20Bm@MCS9 802.11ax: 24dBm@MCS0, 20Bm@MCS11 |
| Interface | Gigabit RJ45 port (LAN): 4 10/100/1000Base-T(X) self-adaptive RJ45 LAN port, support automatic flow control, full/half duplex mode, MDI/MDI-X self-adaption Gigabit RJ45 port (LAN/WAN): 1 10/100/1000Base-T(X) self-adaptive RJ45 LAN/WAN port, supports automatic flow rate control, full/half duplex, MDI/MDI-X self-adaption; supports IEEE802.3af/at standard PoE power input Antenna interfaces: 2 2.4/5G combined antenna interfaces, adopting RPSMA-K connector Console port: CLI command management port(RS-232) Relay (Reserved): one relay output, and adopts 6-pin 5.08mm pitch terminal blocks, with the relay occupying two pins |
| Power Supply | Gigabit PoE RJ45 port: supports IEEE802.3af/at standard, PoE 48VDC power input Power supply terminal: 12~48VDC power input, support non-polarity, using 6-pin 5.08mm pitch terminal blocks, with power supply occupies 4 pins |
| Indicator | Running indicator, alarm indicator, power indicator, 2.4G indicator, 5.8G indicator, 2.4G/5G bridge signal strength indicator, WAN indicator, LAN indicator, PoE indicator |
| Power Consumption | l Normal temperature No-load 9.2w@12VDC, 8.3w@24VDC, 8.2w@36VDC, 8.8w@48VDC l Normal temperature full load 21.6w@12VDC, 18.0w@24VDC, 19.0w@36VDC, 18.7w@48VDC l High temperature full load 22.3w@12VDC, 19.0w@24VDC, 18.7w@36VDC, 18.9w@48VDC |
| Working Environment | Operating temperature: -40~55℃ Storage temperature:-40~85℃ Relative humidity: 5%～95% (no condensation) |
| Physical Characteristic | Housing: IP40 protection grade Installation: DIN-Rail or wall mounting Dimension (W x H x D): 53mm×138mm×110mm Weight: 741g |
| Industrial Standard | IEC 61000-4-2 (ESD, electrostatic discharge), Level 3 l Air discharge: ±8kV l Contact discharge: ±6kV
IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 3 l Ethernet port: ±1kV
IEC 61000-4-5 (Surge), Level 3 l Power supply: common mode±2kV, differential mode±1kV l Ethernet port: ±2kV
Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
| Authentication | CE, FCC, RoHS |
| Warranty | 5 years |
| Available Models | Antenna Interface 2.4G/5G | Gigabit RJ45 LAN Port | Power Input | |
| LAN | PoE LAN/WAN | |||
| IAP3300-2E-4GT1GP-2LVI | 2 | 4 | 1 | PoE 48VDC or 12~48VDC dual power input |
