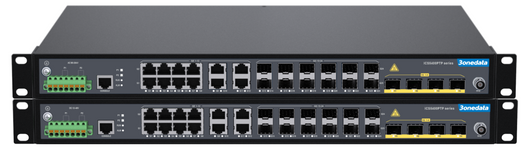

ICS5400PTP -12GT12GS4XS Series
Rack Mounting
28-port Gigabit /10Gigabit Layer 3 PTP Industrial Ethernet Switch
- Support 12 Gigabit Ethernet copper ports + 12 Gigabit Ethernet SFP fiber ports + 4 10Gigabit Ethernet SFP+ fiber ports
- Support Precision Time Protocol (PTP), provide sub-microsecond synchronization accuracy to meet requirements for high-precision time synchronization
- Adopt Ring patent technology, support single ring, coupling ring, chain ring, Dual-homing ring network function, automatic recovery time of network failure < 20ms
- Support multiple network protocols and industry standards, such as Ipv6, RIP, OSPF, PIM, VRRP, ISIS, NAT, MRP, STP/RSTP/MSTP, ERPS, VLAN, IGMP/MLD, IGMP/MLD Snooping, DHCP Server/Relay, LLDP, LACP
- Support dual DC/AC power redundancy, input voltage: 12~48VDC / 90~264VAC
- Support IP40 protection grade
- Support -40~60℃ wide operating temperature range
ICS5400PTP-12GT12GS4XS series are 28-port Gigabit/10Gigabit switches, and layer 3 industrial Ethernet switches that integrate the characteristics of Precise Time Protocol (PTP). Provide a variety of interfaces such as Gigabit copper port, Gigabit SFP slot, 10Gigabit SFP+ slot, which can negotiate the port rate and duplex mode with the device at the opposite end through self-negotiation. Support 12~48VDC and 90~264VAC models, and adopt rack installation mode, which can meet the requirements of different application sites.
The network management system supports a variety of network protocols and industry standards, such as IPv6, PTP, RIP, OSPF, PIM, VRRP, ISIS, NAT, Ring, MRP, STP/RSTP/MSTP, ERPS, VLAN, IGMP/MLD, IGMP/MLD Snooping, DHCP Server/Relay, LLDP, LACP, port mirroring. It possesses complete management functions and supports SNMP centralized management, port statistics, storm suppression, network diagnosis, online upgrade, etc. CLI, HTTP, HTTPS, TELNET, SSH and other access methods can be supported. Network management system could bring you great user experience through its friendly interface design and easy and convenient operation.
The input power supply is two independent power supply circuits which can ensure the normal operation of the device when one power supply fails. The design of DIP switch could implement device factory setting recovery. The hardware adopts fanless, low power consumption and wide temperature design, which has passed rigorous industrial standard tests, and suits for the industrial scene environment with harsh requirements for EMC. It can be widely used in AP coverage, railway transportation, smart city, safe city, new energy, smart grid, intelligent manufacturing and other industrial fields.
| Standard & Protocol | IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX IEEE 802.3ab for 1000Base-T IEEE 802.3z for 1000Base-X IEEE 802.3ae for 10GBase-X IEEE 802.1AS, IEEE1588 for PTP IEEE 802.3x for Flow Control IEEE 802.1D for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1s for Multiple Spanning Tree Protocol ITU-T G.8032 for ERPS IEEE 802.1Q for VLAN IEEE 802.1AB for LLDP IEEE 802.3ad for LACP |
| PTP (Precise Time Protocol) | IEEE1588, IEEE802.1AS |
| Management | SNMP v1/v2c/v3 centralized managed equipment, Port Mirroring, LLDP, DHCP Server, DHCP Relay, port speed limit, port isolation, port statistics, file management, online upgrade, log information, Syslog server |
| Security | User privilege classification, SSH/HTTPS protocol authorization, link flap protection, port loop detection, IPDT, IPv6DT, Smart-Link, NAT, port alarm and power alarm. |
| Switch Function | 802.1Q VLAN, MAC, static aggregation, LACP, ARP, storm suppression |
| Unicast / Multicast | IGMP-Snooping, MLD-Snooping, IGMP, MLD, PIM-SM, PIM-DM, IPv6-PIM-SM, IPv6-PIM-DM |
| Redundancy Technology | Ring, MRP, STP/RSTP/MSTP, ERPS |
| Routing Technique | RIP, RIPng, OSPF, OSPFv3, ISIS, VRRP, IPv6 VRRP, BGP |
| Troubleshooting | Ping, Traceroute, Network Cable Diagnosis, DDMI |
| Time Management | NTP client/server, time zone configuration |
| Interface | Gigabit copper port: 10/100/1000Base-T(X), RJ45, Automatic Flow Control, Full/Half Duplex Mode, MDI/MDI-X Autotunning Gigabit SFP: 1000Base-X SFP slot 10Gigabit SFP+: 1000/10GBase-X self-adaptive SFP+ slot Console port: CLI command line management port(RS-232), RJ45 PPS port: support 1 PPS signal input; adopt BNC interface for connecting an external time source |
| Indicator | Running Indicator, Alarm Indicator, Power Supply Indicator, Interface Indicator |
| Switch Property | Transmission mode: store and forward MAC address: 32K Buffer: 32Mbit Backplane bandwidth: 128G Switch time delay: <10μs |
| Power Supply | l ICS5400PTP-12GT12GS4XS-2LV 12~48VDC, dual power supply redundancy, 7-Pin 5.08mm, power supply occupies 5 pins
l ICS5400PTP-12GT12GS4XS-2HV 90~264VAC, dual power supply redundancy, 7-Pin 5.08mm, power supply occupies 5 pins |
| Power Consumption | No-load: 18.24W@48VDC Full-load: 33.1W@48VDC |
| Working Environment | Operating temperature: -40~60℃ Storage temperature:-40~85℃ Relative humidity: 5%～95% (no condensation) |
| Physical Characteristic | Housing: IP40 protection, metal Installation: rack mounting Weight: about 4000g Dimension (W x H x D): 441.6 (exclude lugs) mm×43.8mm×309.3mm |
| Industrial Standard | IEC 61000-4-2 (ESD, electrostatic discharge), Level 3 l Air discharge: ±8kV l Contact discharge: ±6kV
IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 3 l Ethernet port: ±1kV
IEC 61000-4-5 (Surge), Level 3 l Power supply: common mode±2kV, differential mode±1kV l Ethernet port: common mode±2kV, differential mode±1kV
Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
| Authentication | CE, FCC |
| MTBF | 382,614 hours |
| Available Models | Gigabit Copper Port | Gigabit SFP | 10Gigabit SFP+ | Power Supply | |
| ICS5400PTP-12GT12GS4XS-2LV | 12 | 12 | 4 | 12~48VDC, dual power supply | |
| ICS5400PTP-12GT12GS4XS-2HV | 12 | 12 | 4 | 90～264VAC, dual power supply | |
