IEM615 Series
Embedded Mounting

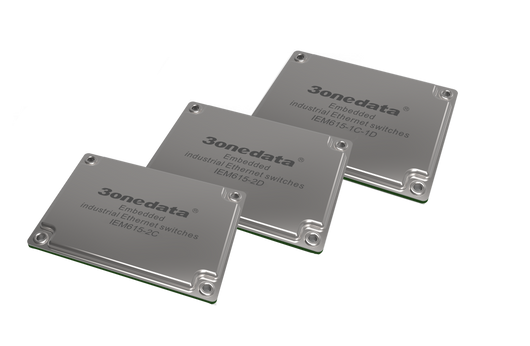

5-Port 100M Layer 2 Managed Industrial Ethernet Switch Module with 2 Serial Ports or CAN Ports
- Support 5 100M fiber/copper ports, 2 serial ports or CAN ports
- Adopt SW-Ring patented technology, support single ring, coupling ring, chain, Dual-homing, automatic recovery time of network failure < 20ms
- Input voltage: 3.3VDC
- Support -40~75℃ wide operating temperature range
IEM615 series is a 5-port 100M layer 2 managed industrial Ethernet switch module with 2 serial ports or CAN ports, which has the characteristics of high integration, small size, rich functions, simple and convenient operation. This series has 4 products to choose from, providing 2 serial ports or CAN ports and 5 100M ports, of which 5 100M ports can be configured with fiber port or copper port as needed; Using embedded installation mode, users can customize the PCB back plane specifications to choose any Ethernet interface types through the module pins, to meet the needs of different application sites.
Network management system supports various network protocols and industrial standards, such as STP/RSTP, 802.1Q VLAN, QoS, Static Multicast, LLDP, Port Mirroring. It also possesses complete management functions, including Port Configuration, Port Statistics, Access Control, Network Diagnosis, Rapid Configuration, Online Upgrading and so on; Integrated serial server and CAN server functions, each serial port and CAN port support 4 TCP or UDP session connections and multiple work modes such as TCP Server, TCP Client and UDP; supports CLI, WEB, Telnet, SNMP and other access methods. Network management system could bring you great user experience through its friendly interface design and easy and convenient operation.
Hardware adopts fanless, low power consumption, wide temperature design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, rail transit, smart city, safety city, new energy, intelligent manufacturing and other industrial fields.
| Standard & Protocol | IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3x for Flow Control IEEE 802.1D for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1Q for VLAN IEEE 802.1p for CoS |
| Management | SNMP v1/v2c Centralized Management of Equipment, Port Mirroring, QoS, LLDP, DHCP Client, File Management, Port Statistics |
| Security | Classification of user permissions, port alarm, power alarm |
| Switch Function | 802.1Q VLAN, bandwidth management, flow control |
| Unicast / Multicast | Static Multicast |
| Redundancy Technology | SW-Ring, STP/RSTP |
| Interface | 100M port: 10/100Base-T(X) or 100Base-FX, fiber port or copper port Console port: TTL level serial data Alarm interface: support 2 alarm information input and output |
| Serial Port | Interface type: Full signal TTL level serial port (RS-232/485/422 optional) Baud rate: 300-115200bps Data bit: 8bits Parity bit: None, Even, Odd Stop bit: 1bit, 2bit |
| CAN Port | Interface type: TTL level CAN port Baud rate: 5-1000kbps |
| Indicator | External indicator, running indicator, interface indicator |
| Switch Property | Transmission mode: store and forward MAC address: 2K Buffer: 0.5Mbit Backplane bandwidth: 1.2G Switch time delay: <10μs |
| Power Supply | 3.3VDC（±5%） |
| Power Consumption | Power: ＜2W |
| Working Environment | Operating temperature: -40~75℃ Storage temperature:-40~85℃ Relative humidity: 5%～95%(no condensation) |
| Mechanical Structure | Installation: embedded installation (with conducting strip, can be equipped with heat sink) Dimension (W x H x D): 55mm×9.7mm×40mm |
| Authentication | CE, FCC, RoHS |
| Warranty | 5 years |
| Available Models | 100M Port (Optional Fiber/Copper Port) | Serial Port (RS-232/485/422 Optional) | CAN Port | Power Supply |
| IEM615-2D | 5 | 2 | ─ | 3.3VDC (±5%) |
| IEM615-1D-1C | 5 | 1 | 1 | |
| IEM615-2C | 5 | ─ | 2 | |
| IEM615-2D-605 | 5 | 2 | ─ |
Note: The IEM615-2D-605 module is compatible with the backplane of the IEM605-2D module and can be used in conjunction with it.
