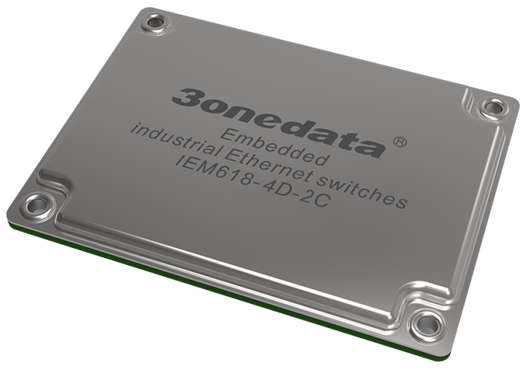

IEM618 Series

IEM618-4D-2C is 8-port 100M layer 2 managed embedded industrial Ethernet switch module with 4 serial ports and 2 CAN ports featuring high integration level, small size, rich functions, easy and convenient usage. This series have 3 types of products. It provides 4 serial ports, 2 CAN ports, and 8 100M ports which could be configured to fiber port or copper port as needed. It also adopts embedded mounting that user can custom the specification of PCB motherboard and freely choose Ethernet interface type through module pin to meet the requirements of different scenes.

Network management system supports various network protocols and industrial standards, such as STP/RSTP, 802.1Q VLAN, QoS, IGMP Static Multicast, Port Trunking, LLDP, Port Mirroring, etc. It also possesses complete management functions, including Port Configuration, Port Statistics, Access Control, Network Diagnosis, Rapid Configuration, Online Upgrading and so on. It has integrated functions of serial port server and CAN server. Each serial port and CAN port support 4 TCP or UDP session connections and multiple operating modes including TCP Server, TCP Client and UDP, etc. CLI, WEB, Telnet, SNMP and other access methods are also supported. The network management system can provide users with good experience with friendly design of network management system interface, simple and convenient operation.

Hardware adopts fanless, low power consumption, wide temperature design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, railway transportation, smart city, safe city, new energy, intelligent manufacturing and other industrial fields.
