IES2300SL Series
DIN-Rail Mounting
5/8/16-Port Gigabit Unmanaged Industrial Ethernet Switch
-
Support 5, 8 or 16 Gigabit copper ports (optional)
-
Support storm suppression, flow control, one-key VLAN, loop detection (16GT), forced 100M (5GT, 8GT) and other functions.
-
Support dual power redundancy, input voltage 12/24/48 VDC (9~60VDC)
-
Support -40~75℃ wide operating temperature range
-
Support IP40 protection grade

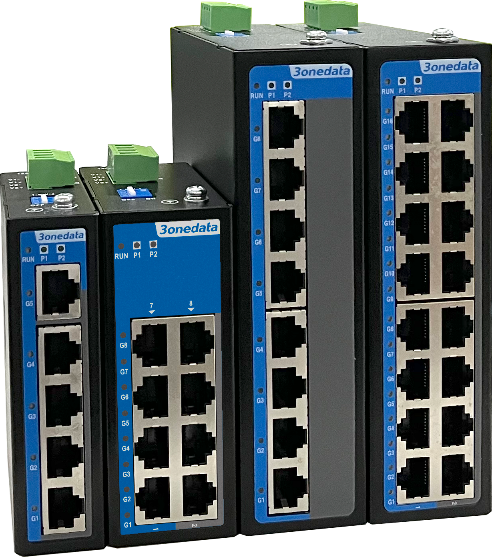

IES2300SL series are 5/8/16-port Gigabit unmanaged industrial Ethernet switches. This series provide 4 products and support Gigabit copper ports. They adopt DIN-Rail mounting to meet the requirements of different application scenes.
DIP switch can implement functions such as the device storm suppression, flow control, VLAN, loop detection, forced 100M. The input power supply is two independent power supply circuits which can ensure the normal operation of the device when one power supply fails. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart city, safety city, intelligent manufacturing and other industrial fields.
| Standard & Protocol | IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX IEEE 802.3ab for 1000Base-T IEEE 802.3x for Flow Control IEEE 802.1Q for VLAN |
| Interface | Gigabit copper port: 10/100/1000Base-T(X), RJ45, Automatic Flow Control, Full/Half Duplex Mode, MDI/MDI-X Autotunning DIP switch: 1- forced 100M (5GT, 8GT)/ loop detection (16GT), 2- storm suppression, 3-VLAN, 4-flow control |
| Indicator | Power indicator, running indicator, interface indicator |
| Switch Property | IES2300SL-5GT-2LV l Transmission mode: store and forward l MAC address: 2K l Buffer: 2Mbit l Backplane bandwidth: 14G l Switch time delay: <10μs
IES2300SL-8GT-2LV, IES2301SL-8GT-2LV l Transmission mode: store and forward l MAC address: 4K l Buffer: 1.5Mbit l Backplane bandwidth: 16G l Switch time delay: <10μs
IES2300SL-16GT-2LV l Transmission mode: store and forward l MAC address: 8K l Buffer: 4.1Mbit l Backplane bandwidth: 52G l Switch time delay: <10μs |
| Power Supply | 12/24/48 VDC (9~60VDC), dual power supply redundancy, using 4-pin 5.08mm pitch terminal blocks, support anti-reverse connection |
| Power Consumption | IES2300SL-5GT-2LV l No-load: 0.2W@12VDC l Full-load: 1.6W@12VDC
IES2300SL-8GT-2LV, IES2301SL-8GT-2LV l No-load: 0.4W@12VDC l Full-load: 3.0W@12VDC
IES2300SL-16GT-2LV l No-load: 3.3W@48VDC l Full-load: 10.4W@48VDC |
| Working Environment | Operating temperature: -40~75℃ Storage temperature:-40~85℃ Relative humidity: 5%～95% (no condensation) |
| Physical Characteristic | Housing: IP40 protection, metal Installation: DIN-Rail mounting Weight: 0.567kg (IES2301SL-8GT-2LV), 0.644kg (IES2300SL-16GT-2LV), Dimension (W x H x D): l IES2300SL-5GT-2LV：28mm×103mm×78mm l IES2300SL-8GT-2LV：40.6mm×103mm×78mm l IES2301SL-8GT-2LV, IES2300SL-16GT-2LV：40.6mm×150mm×120mm |
| Industrial Standard | IEC 61000-4-2 (ESD, electrostatic discharge), Level 3 IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 3 IEC 61000-4-5 (Surge), Level 3 Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
| Authentication | CE, FCC, RoHS |
| Warranty | 5 years |
| Available Models | Gigabit Copper Port | Power Supply |
| IES2300SL-5GT-2LV | 5 | 12/24/48 VDC Dual power supply redundancy |
| IES2300SL-8GT-2LV | 8 | |
| IES2301SL-8GT-2LV | 8 | |
| IES2300SL-16GT-2LV | 16 |
