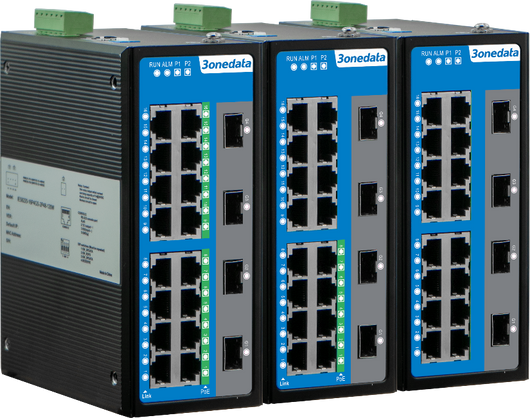

IES6220 Series
DIN-Rail or Wall Mounting
20-port 100M/Gigabit Layer 2 Managed Industrial PoE Ethernet Switch
- Support 4 Gigabit SFP slots and 16 100M copper ports (optional PoE
- The maximum power of single PoE port is 30W
- Adopt Ring patent technology, support single ring, coupling ring, chain, Dual-homing, automatic recovery time of network failure < 20ms
- Support DC dual power supply redundancy
- Support -40~75℃ wide operating temperature range
IES6220 series are 20-port 100M/Gigabit layer 2 managed industrial Ethernet switches. This series provide 100M copper port (optional PoE) and Gigabit SFP slot, and the PoE power supply conforms to the protocol standard of IEEE802.3af/at. They also adopt DIN-Rail or wall mounting, which can meet the requirements of different scenes.
Network management system supports various network protocols and industrial standards, such as STP/RSTP, 802.1Q VLAN, QoS, LLDP, PoE Configuration, IGMP Static Multicast, Port Trunking, Port Mirroring, etc. It also possesses complete management functions, including Port Configuration, Port Statistics, Access Control, Network Diagnosis, Rapid Configuration, Online Upgrading and so on, and supports CLI, WEB, Telnet, SNMP and other access methods. It can provide users with good experience with friendly design of network management system interface, simple and convenient operation.
Power supply is two independent power supply circuits which can ensure the normal operation of the device when one power supply fails. When power supply or port has link failure, ALM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, rail transit, smart city, safety city, new energy, intelligent manufacturing and other industrial fields.
| Standard & Protocol | IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX IEEE 802.3z for 1000Base-X IEEE 802.3x for Flow Control IEEE 802.1D for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol EEE 802.1Q for VLAN IEEE 802.1p for CoS IEEE 802.3ad for LACP IEEE802.1AB for LLDP IEEE 802.3af for PoE IEEE 802.3at for PoE+ |
| Management | SNMP v1/v2c Centralized Management of Equipment, Port Mirroring, QoS, LLDP, DHCP Server, File Management, Port Statistics |
| Security | Classification of User Permissions, Port Alarm, Power Supply Alarm, Storm Suppression, Security Management, E-mail Alarm, Network Diagnosis, SFP DDM |
| Switch Function | 802.1Q Vlan, Static Port Aggregation, Bandwidth Management, Flow Control |
| Unicast / Multicast | Static Multicast, IGMP-Snooping |
| Redundancy Protocol | Ring, STP/RSTP |
| Time Management | SNTP |
| PoE | The maximum power of single PoE port: 30W The power supply pin of PoE: V+, V+, V-, V- correspond to Pin 1, 2, 3, 6 |
| Interface | 100M copper port: 10/100Base-T(X), RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning 100M PoE copper port: 10/100Base-T(X) RJ45, automatic flow control, full/half duplex mode, MDI/MDI-X autotunning, POE port, output power of 15W or 30W Gigabit SFP port: 1000Base-SFP Console port: CLI command line management port (RS-232), RJ45 Alarm port: 6-pin 5.08mm pitch terminal blocks, including 2-pin alarm terminal blocks, support 1 relay alarm output, current carrying capacity is 1A@30VDC or 0.3A@125VAC |
| LED Indicator | Running Indicator, Port Indicator, Power Supply Indicator, Alarm Indicator, PoE Indicator (only for PoE products) |
| Switch Property | Transmission mode: store and forward MAC address: 8K Packet buffer size: 3Mbit Backplane bandwidth: 12.8G Switch time delay: <10μs |
| Power Requirement | 24VDC or 48VDC, 6 pins 5.08mm pitch terminal blocks, including 4 pins power supply terminal blocks DC dual power supply redundancy, anti-reverse connection |
| Power Consumption | IES6220-16T4GS-2P48 l No-load: 5.61W@48VDC l Full-load: 11.2W@48VDC
IES6220-16P4GS-2P48-200W l No-load: 6.81W@48VDC l Full-load: 211W@48VDC |
| Environmental Limit | Operating temperature range: -40~75℃ Storage temperature range: -40~85℃ Relative humidity: 5%～95%(no condensation) |
| Physical Characteristic | Housing: IP40 protection, metal Installation: DIN-Rail or wall mounting Dimension (W x H x D): 70mm×160mm×130mm Weight: ≤1.6kg |
| Industrial Standard | IEC 61000-4-2 (ESD), Level 3 l Air discharge: ±8kV l Contact discharge: ±6kV
IEC 61000-4-4 (EFT), Level 3 l Power supply:±2kV l Ethernet port: ±1kV l Relay: ±2kV
IEC 61000-4-5 (Surge), Level 3 l Power supply: common mode±2kV, differential mode±1kV l Ethernet port: common mode±2kV, differential mode±1kV l Relay: common mode±2kV, differential mode±1kV
Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
| Certification | CE, FCC, RoHS |
| Warranty | 5 years |
| Model | 100M Copper Port | 100M POE Copper Port | Gigabit SFP Slots | Power Supply | PoE Power |
| IES6220-16T4GS-2P48 | 16 | — | 4 | 12~48VDC dual power supply | — |
| IES6220-16P4GS-2P48-120W | — | 16 | 4 | 48VDC dual power supply | 120W |
| IES6220-16P4GS-2P48-200W | — | 16 | 4 | 48VDC dual power supply | 200W |
| IES6220-16P4GS-2P24-120W | — | 16 | 4 | 24VDC dual power supply | 120W |
| IES6220-8T8P4GS-2P48-120W | 8 | 8 | 4 | 48VDC dual power supply | 120W |
| IES6220-8T8P4GS-2P48-200W | 8 | 8 | 4 | 48VDC dual power supply | 200W |
| IES6220-8T8P4GS-2P24-120W | 8 | 8 | 4 | 24VDC dual power supply | 120W |
