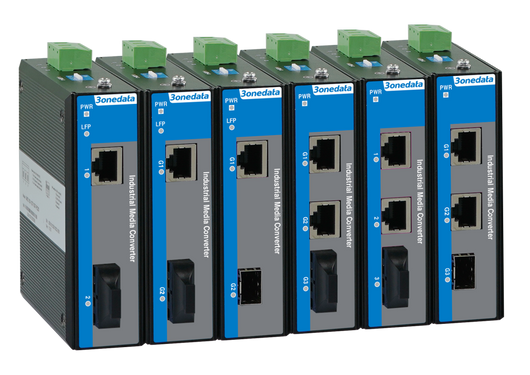

IMC100 Series
DIN-Rail Mounting
Unmanaged Industrial Media Converter
- Support 1 100M/Gigabit fiber port, 1/2 100M/Gigabit copper ports or 1 Gigabit SFP
- Support optional AC/DC, single/dual power supply, input voltage: 12~48VDC/ DC or 100~240VAC/DC
- Support -40~75℃ wide operating temperature range
IMC100 series are unmanaged industrial media converters. This series have 14 products and support a variety of optional interfaces including 100M fiber ports, 100M copper ports, Gigabit fiber ports, Gigabit copper ports and Gigabit SFP. They adopt DIN-Rail mounting to meet the requirements of different application scenes.
Product supports optional AC/DC power supply. The DIP switch could implement functions like jumbo frame, LFP, one-key VLAN or flow control. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart city, rail transit, smart city, safety city, new energy, intelligent manufacturing and other industrial fields.
| Standard & Protocol | IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100BaseFX IEEE 802.3z for 1000Base-X IEEE 802.3ab for 1000Base-T IEEE 802.3x for Flow Control IEEE 802.1Q for VLAN | |||||||||||||||
| Interface | 100M copper port: 10/100Base-T(X), RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/ MDI-X Autotunning 100M fiber port: 100Base-FX, optional SC/ST/FC Gigabit copper port: 10/100/1000Base-T(X), RJ45, Automatic Flow Control, Full/Half Duplex Mode, MDI/MDI-X Autotunning Gigabit fiber port: 1000Base-FX, optional SC/ST/FC Gigabit SFP: 1000Base-FX SFP slot | |||||||||||||||
| Indicator | Interface Indicator, Power Supply Indicator, LFP Indicator(1 copper port and 1 fiber port product only) | |||||||||||||||
| Switch Property | IMC100-1T1F-P48, IMC100-1T1F-P220, IMC100-2T1F-P48, IMC100-2T1F-P220, IMC100-1T1F-2P48, IMC100-2T1F-2P48 l MAC address: 2K l Backplane bandwidth: 1G l Transmission mode: store and forward
IMC100-1GT1GF-P48, IMC100-1GT1GF-P220, IMC100-1GT1GS-P48, IMC100-1GT1GS-P220, IMC100-2GT1GF-P48, IMC100-2GT1GF-P220, IMC100-2GT1GS-P48, IMC100-2GT1GS-P220, l MAC address: 2K l Backplane bandwidth: 18.2G l Transmission mode: store and forward | |||||||||||||||
| Power Supply | Single power supply: DC/AC power supply (optional), 12~48VDC or 100~240VAC/DC, 3-pin 7.62 pitch terminal blocks Dual power supply: 12~48VDC, 4-pin 5.08mm pitch terminal blocks | |||||||||||||||
| Power Consumption |
| |||||||||||||||
| Working Environment | Operating temperature: -40~75℃ Storage temperature:-40~85℃ Relative humidity: 5%～95% (no condensation) | |||||||||||||||
| Physical Characteristic | Housing: IP40 protection, metal Installation: DIN-Rail mounting Dimension (W x H x D): 35mm×110mm×95mm Weight: l IMC100-1T1F-P48, IMC100-1T1F-2P48, IMC100-2T1F-2P48: 337g l IMC100-2T1F-P220: 345g l IMC100-1GT1GS-P220: 343g l IMC100-2GT1GF-P220: 342g | |||||||||||||||
| Industrial Standard | IEC 61000-4-2 (ESD, electrostatic discharge), Level 3 l Air discharge:± 8kV l Contact discharge: ±6kV
IEC 61000-4-4 (EFT, electrical fast transient), Level 3 l Power supply: ±2kV l Signal: ±1kV
IEC61000-4-5 (Surge), Level 3 l Power supply: differential mode±1kV, common mode±2kV l Signal: differential mode±1kV, common mode±2kV
Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 | |||||||||||||||
| Authentication | CE, FCC, RoHS | |||||||||||||||
| Warranty | 5 years |
| Available Models | 100M Copper Port | 100M Fiber Port | Gigabit Copper Port | Gigabit Fiber Port | Gigabit SFP | Power Supply |
| IMC100-1T1F-P48 | 1 | 1 | - | - | - | 12~48VDC |
| IMC100-2T1F-P48 | 2 | 1 | - | - | - | |
| IMC100-1GT1GF-P48 | - | - | 1 | 1 | - | |
| IMC100-1GT1GS-P48 | - | - | 1 | - | 1 | |
| IMC100-2GT1GF-P48 | - | - | 2 | 1 | - | |
| IMC100-2GT1GS-P48 | - | - | 2 | - | 1 | |
| IMC100-1T1F-2P48 | 1 | 1 | - | - | - | 12~48VDC Redundant power supply |
| IMC100-2T1F-2P48 | 2 | 1 | - | - | - | |
| IMC100-1T1F-P220 | 1 | 1 | - | - | - | 100~240VAC/DC |
| IMC100-2T1F-P220 | 2 | 1 | - | - | - | |
| IMC100-1GT1GF-P220 | - | - | 1 | 1 | - | |
| IMC100-1GT1GS-P220 | - | - | 1 | - | 1 | |
| IMC100-2GT1GF-P220 | - | - | 2 | 1 | - | |
| IMC100-2GT1GS-P220 | - | - | 2 | - | 1 |
