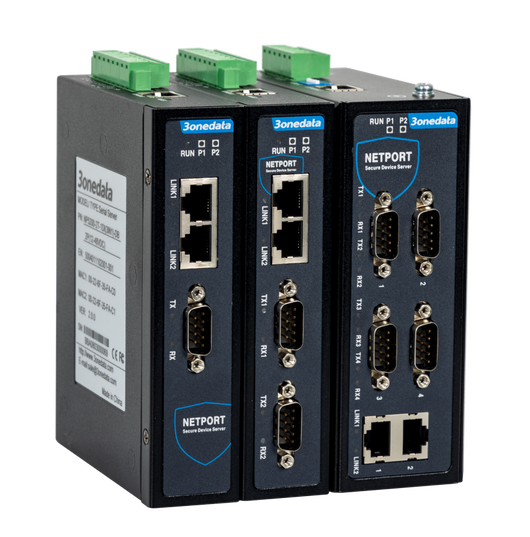

NP5200 Series
DIN-Rail Mounting
1/2/4 RS-232/485/422 3IN1 Safe Serial Server
- Support 1/2/4 3IN1 serial ports to 2 10/100Base-T(X) self-adaptive Ethernet interfaces
- Support network modes such as redundant mode, switching mode and dual IP mode to meet the needs of various network environments
- Support RealCom, Reverse RealCom, TCP Server, TCP Client, UDP Server, UDP Client, Pair Master, Pair Slave, UDP Rang, UDP Multicast, Telnet, Reverse Telnet, RFC2217, Redundant COM, DRDAS RealCom, DRDAS TCP Server and other operating modes
- Support dual power supply 12~48VDC wide voltage input range
- Support -40~75℃ wide temperature operation
NP5200 series are the safe serial networking server that can make serial device be equipped with networking capability instantly and centrally manage the scattered serial devices and hosts via network. This product supports 1/2/4 RS-232/485/422 serial ports to 2 100M Ethernet copper ports. It adopts DIN-Rail mounting to meet the requirements of different application scenes.
Serial device server supports multiple network protocols, such as TCP, UDP, RFC2217, TELNET, ARP, ICMP, HTTP, HTTPS, SNMP, SSH, SMTP, SNTP, DNS, BOOTP and DHCP protocol. It also possesses complete management functions, including Access Control, Rapid Configuration, Online Upgrading and so on. Each serial port supports 4 TCP or UDP session connections, and it also supports RealCom, Reverse RealCom, TCP Server, TCP Client, UDP Server, UDP Client, Pair Master, Pair Slave, UDP Rang, UDP Multicast, Telnet, Reverse Telnet, RFC2217, Redundant COM, DRDAS RealCom and DRDAS TCP Server work modes and TELNET, WEB and SSHD access modes. Furthermore, supplied management configuration tool based on Windows platform can guide the user to manage and configure the device, achieving immediate networking of serial device via simple settings. It can provide users with good experience with friendly design of network management system interface, simple and convenient operation.
This product supports DIP switch or RST button, which can achieve the device restore factory defaults. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can adapt to the industrial scene environment with harsh requirements for EMC. It can be widely used in custom checkpoint system, smart gas station, data center and industrial automation, etc.
| Ethernet | Standard: 10Base-T, 100Base-TX Protocol: TCP, UDP, ARP, HTTP, HTTPS, TELNET, ICMP, SMTP, SNTP, DHCP, DNS Rate: 10/100M Automatic Flow Control, MDI/MDI-X Autotunning Interface form: RJ45 Interface quantity: 2 Duplex mode: Full/Half Duplex Mode Self-adaption Work mode: each serial port can simultaneously establish up to 4 TCP/UDP session connections, support work modes such as RealCom, Reverse RealCom, TCP Server, TCP Client, UDP Server, UDP Client, Pair Master, Pair Slave, UDP Rang, UDP Multicast, Telnet, Reverse Telnet, RFC2217, Redundant COM, DRDAS RealCom and DRDAS TCP Server | ||||||||||||
| Serial Port | Standard: EIA RS-232C, RS-485, RS-422 Quantity of serial port: 1/2/4 3IN1 serial ports RS-232 signal: RXD, TXD, DTR, GND, DSR, RTS, CTS, DCD RS-485 signal: D+, D-, GND RS-422 signal: T+, T-, GND, R+, R- Baud rate: 110bps-115200bps Data bit: 5bit, 6bit, 7bit, 8bit Parity bit: None, Even, Odd, Space, Mark Stop bit: 1bit, 1.5bit, 2bit Interface form: DB9 Flow control: RTS/CTS, DTR/DSR, XON/XOFF Direction control: RS-485 direction adopts Automatic Data Direction Control (ADDC) Load capacity: RS-485/422 end supports 32 points polling (customizable 256 points) Transmission distance: RS-232, 15m; RS-485/422, 1200m Pull high/low resistor for RS-485: 4.7kΩ Electromagnetic isolation strength: 2kVDC | ||||||||||||
| Console Port | CLI command line management port (RS-232), RJ45 | ||||||||||||
| Configuration Method | WEB configuration management, TELNET configuration, Windows configuration tool, SSHD configuration | ||||||||||||
| Security | User right classification, IP address filtering, MAC address filtering, SNMP/ Mail /System Log alarm, HTTP/HTTPS/SSHD/TELNET access control | ||||||||||||
| Indicator | Power supply indicator, Ethernet port indicator, serial port indicator, running indicator | ||||||||||||
| Power Supply | l NP5200-2T-4DI(3IN1)-DB The power supply access terminal is 6-pin 5.08mm pitch terminal blocks (power supply occupies 4 pins in the left) Input power supply: 12~48VDC, dual power supply redundancy l NP5200-2T-2DI(3IN1)-DB、NP5200-2T-1DI(3IN1)-DB The power supply access terminal is 8-pin 5.08mm pitch terminal blocks (power supply occupies 4 pins in the left) Input power supply: 12~48VDC, dual power supply redundancy | ||||||||||||
| Power Consumption |
| ||||||||||||
| Working Environment | Operating temperature: -40~75℃ Storage temperature: -40~85℃ Relative humidity: 5%～95%(no condensation) | ||||||||||||
| Physical Characteristic | Housing: IP40 protection, metal Installation: DIN-Rail mounting
NP5200-2T-4DI(3IN1)-DB： l Dimension (W x H x D): 53mm×138mm×110mm l Weight: 591g
NP5200-2T-2DI(3IN1)-DB： l Dimension (W x H x D): 33mm×138mm×110mm l Weight: 470g
NP5200-2T-1DI(3IN1)-DB： l Dimension (W x H x D): 33mm×138mm×110mm l Weight: 461g | ||||||||||||
| Industrial Standard | IEC 61000-4-2 (ESD, electrostatic discharge), Level 3 l Air discharge: ± 8kV l Contact discharge: ±6kV
IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 3 l Signal: ±1kV
IEC 61000-4-5 (Surge), Level 3 l Power supply: common mode±2kV, differential mode±1kV l Signal: common mode ±2kV, differential mode ±1kV
Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 | ||||||||||||
| Authentication | CE, FCC, RoHS | ||||||||||||
| Warranty | 3 years |
| Available Models | 100M Copper Port | 3IN1 (RS-232/485/422) | Power Supply |
| NP5200-2T-4DI(3IN1)-DB | 2 | 4 | 12~48VDC dual power supply |
| NP5200-2T-2DI(3IN1)-DB | 2 | 2 | |
| NP5200-2T-1DI(3IN1)-DB | 2 | 1 |
