IES2000 Series
DIN-Rail or Wall Mounting

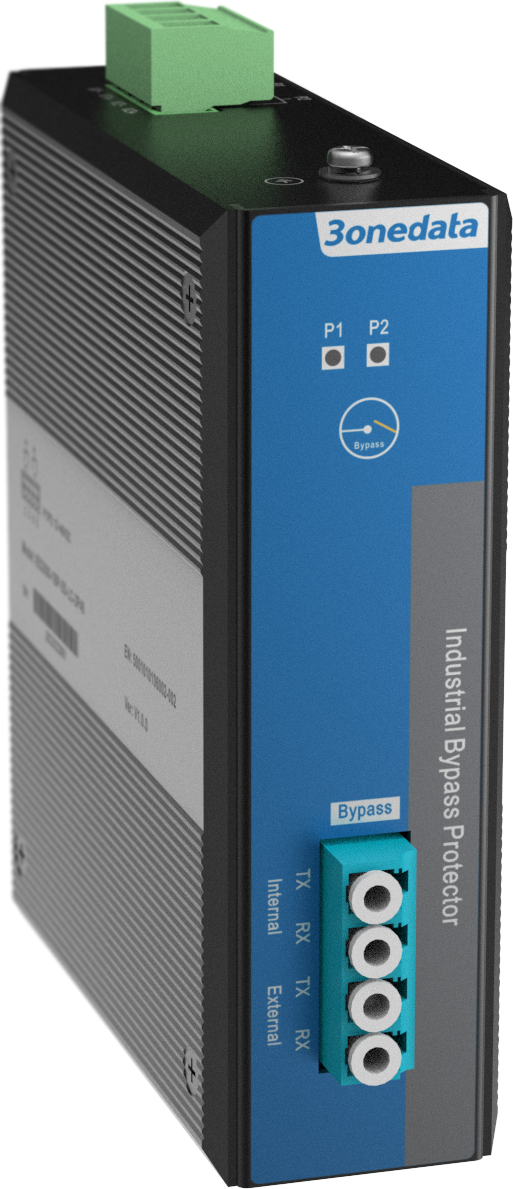

One-Way Industrial Optical Fiber Bypass Protector
- Support 1 single mode single-fiber LC fiber port Bypass
- Support 12~48VDC input, dual power supply redundancy, and anti-reverse connection
- Support -40~75℃ wide operating temperature range
- Support IP40 protection grade
IPMC101 Series are 2-port 100M unmanaged industrial PoE fiber converters, and the PoE power supply is up to the protocol standard of IEEE 802.3af/at. This series have two products and provide 100M copper ports, fiber ports and PoE copper ports. They adopt DIN-Rail mounting or wall mounting, which can meet the requirements of different scenes.
The DIP switch could implement flow control, jumbo frames and LFP alarm. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, railway transportation, smart city, safe city, new energy, intelligent manufacturing and other industrial fields.
| Standard & Protocol | IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3x for Flow Control IEEE 802.3af for PoE IEEE 802.3at for PoE+ | |||||||||
| PoE | The maximum power consumption of PoE port: 30W The power supply pin of PoE: V+, V+, V-, V- correspond to Pin 1, 2, 3, 6 | |||||||||
| Interface | Copper port: 10/100Base-T(X), RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning Fiber port: 100Base-FX, SC/ST/FC optional | |||||||||
| LED Indicator | Running Indicator, Port Indicator, Power Supply Indicator, PoE Indicator, LFP Indicator | |||||||||
| Switch Property | Transmission mode: store and forward MAC address: 2K Packet buffer size: 1Mbit Backplane bandwidth: 1.6G Switch time delay: <10μs | |||||||||
| Power Requirement | 48VDC (44~55VDC), 3-pin 7.62mm pitch terminal blocks reverse polarity protection | |||||||||
| Power Consumption |
| |||||||||
| Environmental Limit | Operating temperature: -40~75℃ Storage temperature: -40~85℃ Relative humidity: 5%～95% (no condensation) | |||||||||
| Physical Characteristic | Housing: IP40 protection, metal Installation: DIN-Rail mounting or wall mounting Dimension (W x H x D): 36mm×110mm×97mm Weight:≤390g | |||||||||
| Industrial Standard | IEC 61000-4-2 (ESD), Level 2 l Air discharge: ±4kV l Contact discharge:±4kV
IEC 61000-4-4 (EFT), Level 2 l Power supply: ±1kV l Ethernet port: ±0.5kV
IEC 61000-4-5 (Surge), Level 2 l Power supply: common mode±1kV, differential mode±0.5kV l Ethernet port: ±1kV
Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 | |||||||||
| Certification | CE, FCC, RoHS | |||||||||
| Warranty | 5 years |
| Available Models | 100M Fiber Port | 100M SFP Slot | 100M POE Copper Port | Power Supply |
| IPMC101-F-POE | 1 | ― | 1 | 48VDC |
| IPMC101-1S-POE | ― | 1 | 1 |
