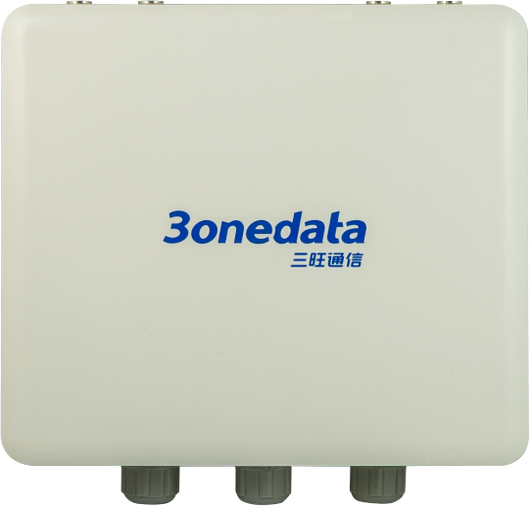

Серия IAP3600S
Монтаж на стену или столб
Промышленная наружная двухдиапазонная беспроводная точка доступа Wi-Fi6
- Поддержка двух интерфейсов антенн 2.4G, двух интерфейсов антенн 5G, 1 гигабитного порта RJ45 (LAN) и 1 гигабитного порта PoE RJ45 (LAN/WAN)
- Поддержка Wi-Fi6 (802.11ax), которая может улучшить пропускную способность системы и одновременный доступ, а также сократить задержку передачи.
- Поддержка нескольких сетевых режимов, таких как маршрутизация, точка доступа, мост и клиентский режим.
- Поддержка входного питания PoE IEEE802.3at/af и входного питания 12~48 В постоянного тока
- Поддержка широкого диапазона рабочих температур от -40 до 75 ℃
IAP3600S-2225-2GT-PDP12_48 is 2-port Gigabit industrial outdoor dual-band Wi-Fi6 wireless AP, the PoE power supply conforms to IEEE802.3af/at protocol standard. This product provides 2.4G antenna interface, 5G antenna interface, Gigabit RJ45 port (LAN) and Gigabit PoE RJ45 port (LAN/WAN) and other interfaces, and supports wall mounting or pole mounting, which can meet the needs of different application sites.
The network management system supports multiple work modes: routing, AP, bridge and client. Support IEEE802.11a/b/g/n/ac/ax wireless technology, the wireless transmission rate of the whole device is up to 1774.5Mbps; The device supports wireless encryption methods such as WPA/WPA2/WPA3, and has various security policies such as SSID hiding, wireless user isolation, IP address filtering, MAC filtering, Port forwarding, Port redirection, ARP binding, DMZ setting, etc. Support virtual AP, that is, one AP device supports multiple SSIDs.
RESET button can reboot the device and restore factory defaults. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. All components are industrial grade, and the protection grade is IP68, which can adapt to the harsh outdoor environment. It can be widely used in rail transit, security, smart city, integrated pipe gallery, production automation, smart lamp pole and other industries.
| Standard & Protocol | IEEE 802.3 for 10Base-T IEEE802.3u for 100Base-TX IEEE 802.3ab for 1000Base-T IEEE802.11a/b/g/n/ac/ax for WLAN IEEE802.11i for wireless security IEEE802.11r for fast roaming IEEE802.11e for WWM IEEE802.3af for PoE IEEE802.3at for PoE+ |
| Working mode | Routing mode (WAN: PPPoE dial-up, static IP, DHCP dynamic IP acquisition) AP mode (LAN: static IP, DHCP dynamically acquiring IP) Bridge mode (connection: WDS bridge, universal bridge; point-to-point, roaming) Client mode (connection: WDS bridge, universal bridge, wireless NAT; point-to-point, roaming) |
| WLAN | WAP/WAP2/WAP3 personal/enterprise edition encryption mode, hidden wireless SSID, wireless user isolation, wireless transmission power adjustment, maximum user limit, packet segmentation and RTS threshold, China/US wireless channel, WMM |
| Management | Intranet settings, extranet settings, wireless settings, AC management, SNMP management, roaming agent, user settings, system upgrade, timed restart, profile management, system log, wireless user list, and Wi-Fi real-time traffic monitoring |
| Security policy | Wireless user black/white list, wireless user event notice, IP filtering, MAC filtering, port forwarding, port redirection, ARP binding, DMZ setting |
| Routing/switching | Static routing (routing mode, wireless NAT) |
| Location Service | Wireless probe |
| Troubleshooting | Network Detection |
| Time Management | NTP Client |
| Radio Frequency | 802.11b/g/n/ax: 2.412GHz~2.4835GHz 802.11a/n/ac/ax: 5.18GHz~5.825GHz RF power output: 20dBm Modulation methods: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM |
| Receiving Sensitivity | 802.11b: -87dBm@1Mbps, -76dBm@11Mbps 802.11g/a: -82dBm@6Mbps, -65dBm@54Mbps 802.11n: -82dBm@MCS0, -64dBm@MCS7 802.11ac: -82dBm@MCS0, -57dBm@MCS9 802.11ax: -82dBm@MCS0, -52dBm@MCS11 |
| Transmitting power | 802.11b: 24dBm@1Mbps, 20dBm@11Mbps 802.11g/a: 24dBm@6Mbps, 20dBm@54Mbps 802.11n: 24dBm@MCS0, 20Bm@MCS7 802.11ac: 24dBm@MCS0, 20Bm@MCS9 802.11ax: 24dBm@MCS0, 20Bm@MCS11 |
| Interface | Gigabit RJ45 port (LAN): 1 10/100/1000Base-T(X) self-adaptive RJ45 LAN port, support automatic flow control, full/half duplex mode, MDI/MDI-X self-adaption Gigabit RJ45 port (LAN/WAN): 1 10/100/1000Base-T(X) self-adaptive RJ45 LAN/WAN port, supports automatic flow rate control, full/half duplex, MDI/MDI-X self-adaption; supports IEEE802.3af/at standard PoE power input Antenna interface: two 2.4G antenna interfaces, N-K(Female) Two 5G antenna interfaces, N-K(Female) |
| Power Supply | Gigabit PoE RJ45 port: supports IEEE802.3af/at standard, PoE 48VDC power input Power supply terminal: 12~48VDC power input, support non-polarity, using 3-pin 5.08mm pitch terminal blocks with waterproof plug |
| Indicator | Running indicator, 2.4G indicator, 5.8G indicator, WLAN indicator, LAN indicator, bridge signal strength indicator |
| Power Consumption | No-load: 5.7W@24VDC Full-load: 7.9W@24VDC (high temperature≤8.6W) |
| Working Environment | Operating temperature: -40~75℃ Storage temperature:-40~85℃ Relative humidity: 5%～95% (no condensation) |
| Physical Characteristic | Housing: IP68 protection grade Installation: Wall mounting or pole mounting Dimension (W x H x D): 275mm×245mm×76mm |
| Industrial Standard | IEC 61000-4-2 (ESD, electrostatic discharge), Level 4 l Air discharge:± 15kV l Contact discharge: ±8kV
IEC 61000-4-4 (EFT, electrical fast transient), Level 4 l Ethernet port: ±2kV
IEC 61000-4-5 (Surge), Level 4 l Power supply: common mode±4kV, differential mode±2kV l Ethernet interface: ±4kV
Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
| Authentication | CE, FCC, RoHS |
| Warranty | 5 years |
| Available Models | Antenna Interface | Gigabit RJ45 | Power Input | ||
|
| 2.4G | 5G | LAN | PoE LAN/WAN |
|
| IAP3600S-2225-2GT-PDP12_48 | 2 | 2 | 1 | 1 | PoE 48VDC or 12~48VDC |
