Серия ICS5428

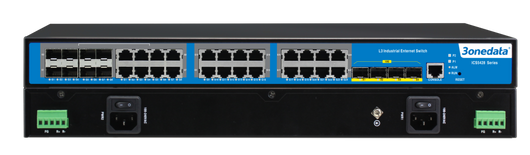

Монтаж в 19-дюймовую стойку высотой 1U
28-портовый гигабитный /10-гигабитный промышленный коммутатор Ethernet уровня 3
- Поддержка 4 10-гигабитных оптоволоконных портов (слоты SFP+) или 4 гигабитных оптоволоконных портов (слоты SFP), 8 гигабитных комбинированных портов (слоты SFP или RJ45) и 16 гигабитных медных портов (опционально PoE)
- Принять запатентованную технологию Ring, поддерживает одиночное кольцо, соединительное кольцо, цепь, функцию двойного наведения
- Поддержка ERPS и обнаружения петель, что позволяет эффективно устранять петли и предотвращать широковещательные штормы, вызванные петлями данных
- Пропускная способность 10 Гбит/с позволяет передавать большие объемы видео, голоса и данных с высокой производительностью и скоростью.
- Поддержка опционального двойного источника питания переменного/постоянного тока, входное напряжение: 100~240 В переменного/постоянного тока или 48 В постоянного тока или 24 В постоянного тока
- Поддержка широкого диапазона рабочих температур от -40 до 75 ℃
ICS5428 series is 28-port Gigabit/10 Gigabit layer 3 industrial Ethernet switch. It provides 10 Gigabit SFP slots, Gigabit SFP slots, Gigabit PoE port, Gigabit copper ports and Gigabit fiber and copper multiplexing port. It adopts 1U rack mounting. PoE power supply conforms to IEEE802.3af/at protocol standard, and it can power device over Ethernet, thus decreasing the cable connection of powered devices. Abundant numbers of interfaces, bandwidth of Gigabit/10Gigabit combination and ability to transmit large amounts of video, voice and data with high performance and high speed meet the application requirements of large-scale industrial network.
Network management system supports a variety of network protocols and industry standards, such as ARP, VRRP, RIP, OSPF, BGP, NAT, ERPS, STP/ RSTP/MSTP, 802.1Q VLAN, QoS function, IGMP Snooping static multicast function, LLDP, port trunking, port mirror, etc. It has perfect management functions, supporting port configuration, port statistics, 802.1X authentication, network diagnosis, rapid configuration, online upgrade, loop detection, etc. CLI, WEB, Telnet, SSH, SNMP and other access methods can be supported. Network management system could bring you great user experience through its friendly interface design and easy and convenient operation.
This product supports optional dual AC/DC power supply. The input power supply is two independent power supply circuits which can ensure the normal operation of the device when one power supply fails. When power supply or port has link failure, ALARM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart city, rail transit, smart city, safety city, new energy, intelligent manufacturing and other industrial fields.
| Standard & Protocol | IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX IEEE 802.3ab for 1000Base-T IEEE 802.3z for 1000Base-X IEEE 802.3ae for 10GBase-X SFP+ IEEE 802.3x for Flow Control IEEE 802.1D for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1Q for VLAN IEEE802.1p for CoS IEEE 802.1X for 802.1X Authentication IEEE 802.1AB for LLDP IEEE 802.3af for PoE IEEE 802.3at for PoE+ | |||||||||
| Management | SNMP v1/v2c/v3 Centralized Management Devices, RMON, Port Mirroring, QoS, LLDP, DHCP Server, File Management, Log Management, Port Statistics, ARP, PoE management | |||||||||
| Security | User permission rating, ACL, 802.1X authentication, port alarm, power alarm, storm suppression, Telnet configuration, SSH configuration, link flapping protection, NAT, DHCP snooping, loop detection | |||||||||
| Switch Function | 802.1Q VLAN, Port Trunking, Bandwidth Management, Flow Control, Port Isolation | |||||||||
| Unicast / Multicast | Static Multicast, Multicast Passthrough, GMRP, IGMP-Snooping, PIM-SM, PIM-DM | |||||||||
| Redundancy Technology | Ring, STP/RSTP/MSTP, ERPS | |||||||||
| Troubleshooting | Ping, Traceroute, Port Loopback, SFP Digital Diagnosis | |||||||||
| Routing Technique | VRRP, RIP, OSPF, BGP | |||||||||
| Time Management | NTP Client, RTC | |||||||||
| Interface | Gigabit copper port: 10/100/1000Base-T(X) self-adaptive RJ45, automatic flow control, support full/half duplex mode, MDI/MDI-X self-adaption Gigabit PoE:10/100/1000Base-T (X) self-adaptive RJ45, automatic flow control, support full/half duplex mode, MDI/MDI-X self-adaption; The maximum capacity of a single port is 30W PoE power supply output. Pin 1 and 2 of PoE power supply are positive, while Pin 3 and 6 are negative Gigabit SFP: 100/1000Base-X self-adaptive SFP slot 10Gigabit SFP+: 1000/10GBase-X self-adaptive SFP+ slot Combo port: 10/100/1000Base-T(X) RJ45 or 100/1000Base-X SFP slot Console port: CLI command line management port(RS-232), RJ45 Alarm port: 2 5-pin 5.08mm pitch terminal blocks(relay occupies 2 pins), support 2 relay alarm outputs, current loading capacity is 5A/30VDC or 10A/125VAC | |||||||||
| Indicator | Run indicator, interface indicator power indicator, alarm indicator, PoE indicator | |||||||||
| Switch Property | Transmission mode: store and forward MAC address: 16K Packet buffer size: 12Mbit Backplane bandwidth: 128G | |||||||||
| Power Supply | ICS5428-16GT8GC4XS-2P220, ICS5428-16GT4GS8GC-2P220 l Input voltage: 220VAC (100~240VAC/DC) l Redundant power supply: support dual power supply redundancy l Overcurrent protection: 5A l Access terminal: single-phase socket with rocker switch
ICS5428-16GT8GC4XS-2P48, ICS5428-16GT4GS8GC-2P48 l Input voltage: 48VDC (36~72VDC) l Redundant power supply: support dual power supply redundancy l Overcurrent protection: 3A l Connection protection: anti-reverse connection l Access terminal: 5-pin 5.08mm pitch terminal blocks (power supply occupies 2 pins)
ICS5428-16GT8GC4XS-2P24, ICS5428-16GT4GS8GC-2P24 l Input voltage: 24VDC (18~72VDC) l Redundant power supply: support dual power supply redundancy l Overcurrent protection: 3A l Connection protection: anti-reverse connection l Access terminal: 5-pin 5.08mm pitch terminal blocks (power supply occupies 2 pins)
ICS5428-16GP8GC4XS-2P48, ICS5428-16GP4GS8GC-2P48 l Input voltage: 48VDC l Redundant power supply: support dual power supply redundancy l Overcurrent protection: 3A l Connection protection: anti-reverse connection l Access terminal: 5-pin 5.08mm pitch terminal blocks (power supply occupies 2 pins) | |||||||||
| Power Consumption |
| |||||||||
| Working Environment | Operating temperature: -40~75℃ Storage temperature:-40~85℃ Relative humidity: 5%～95%(no condensation) | |||||||||
| Physical Characteristic | Housing: IP30 protection, metal Installation: 19-inch 1U rack mounting Weight: 3.94kg (ICS5428-16GT8GC4XS-2P220), 3.95kg (ICS5428-16GP4GS8GC-2P48) Dimension (W x H x D): 440.4mm×44mm×304.8mm (lugs are not included) | |||||||||
| Industrial Standard | IEC 61000-4-2 (ESD, electrostatic discharge), Level 3 l Air discharge:± 8kV l Contact discharge: ±6kV
IEC 61000-4-4 (EFT, electrical fast transient), Level 3 l Power supply: ±2kV l Signal: ±1kV
IEC 61000-4-5 (Surge), Level 3 l Power supply: differential mode±1kV, common mode±2kV l Signal: differential mode±1kV, common mode±2kV
Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 | |||||||||
| Authentication | CE, FCC, RoHS | |||||||||
| Warranty | 5 years |
| Gigabit | 10 Gigabit | Power Supply | ||||
| Copper Port | PoE Port | Combo Port | SFP | SFP+ | ||
| ICS5428-16GT8GC4XS-2P220 | 16 | — | 8 | — | 4 | 220VAC/DC （100~240VAC/DC） Redundant power supply |
| ICS5428-16GT4GS8GC-2P220 | 16 | — | 8 | 4 | — | |
| ICS5428-16GT8GC4XS-2P48 | 16 | — | 8 | — | 4 | 48VDC（36~72VDC） Redundant power supply |
| ICS5428-16GT4GS8GC-2P48 | 16 | — | 8 | 4 | — | |
| ICS5428-16GT8GC4XS-2P24 | 16 | — | 8 | — | 4 | 24VDC（18~72VDC） Redundant power supply |
| ICS5428-16GT4GS8GC-2P24 | 16 | — | 8 | 4 | — | |
| ICS5428-16GP8GC4XS-2P48 | — | 16 | 8 | — | 4 | 48VDC Redundant power supply |
| ICS5428-16GP4GS8GC-2P48 | — | 16 | 8 | 4 | — | |
