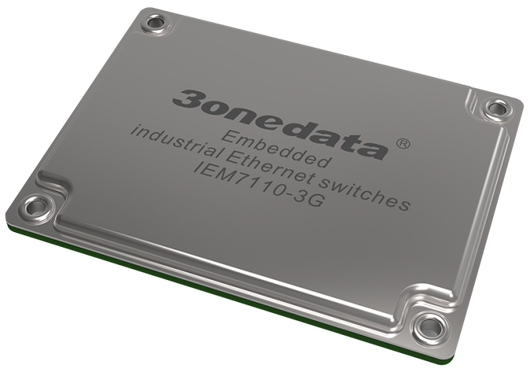

Серия IEM7110
Встроенный монтаж
10- портовый 100M /Gigabit Layer 2 управляемый промышленный Ethernet-коммутаторный модуль
- Поддержка 3 гигабитные оптоволоконные/медные порты и 7 100M оптоволоконных/медных портов
- Применяется запатентованная технология SW-Ring, поддерживается одинарное кольцо, соединительное кольцо, цепное кольцо, функция сети с двойным подключением, автоматическое время восстановления после сбоя сети < 20 мс.
- Входное напряжение: 3,3 В постоянного тока
- Поддержка широкого диапазона рабочих температур от -40 до 7,5 ℃
IEM7110-3G is 10-port 100M/gigabit layer 2 managed embedded industrial Ethernet switch modules featuring high integration level, small size, rich functions, easy and convenient usage. It provides 3 gigabit ports and 7 100M ports which could be configured to fiber port or copper port as needed. It also adopts embedded mounting that user can custom the specification of PCB motherboard and freely choose Ethernet interface type through module pin to meet the requirements of different scenes.
Network management system supports various network protocols and industrial standards, such as STP/RSTP, 802.1Q VLAN, QoS, LLDP, IGMP Static Multicast, Port Trunking, Port Mirroring, etc. It also possesses complete management functions, including Port Configuration, Port Statistics, Access Control, Network Diagnosis, Rapid Configuration, Online Upgrading and so on. CLI, WEB, Telnet, SNMP and other access methods are also supported. The network management system can provide users with good experience with friendly design of network management system interface, simple and convenient operation.
Hardware adopts fanless, low power consumption, wide temperature design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, railway transportation, smart city, safe city, new energy, intelligent manufacturing and other industrial fields.
| Standard & Protocol | IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3z for 1000Base-X IEEE 802.3ab for 1000Base-T IEEE 802.3x for Flow Control IEEE 802.1D for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1Q for VLAN IEEE 802.1p for CoS |
| Management | SNMP v1/v2c Centralized Management of Equipment, Port Mirroring, QoS, LLDP, DHCP Client, File Management, Port Statistics |
| Security | Classification of User Permissions, Port Alarm, Power Supply Alarm, Threshold Alarm |
| Switch Function | 802.1Q Vlan, Static Port Aggregation, Bandwidth Management, Flow Control |
| Unicast / Multicast | Static Multicast, IGMP-Snooping |
| Redundancy Protocol | SW-Ring, STP/RSTP |
| Interface | 100M port: 10/100Base-T(X) or 100Base-FX Gigabit port: 10/100/1000Base-T(X) or 1000Base-SFP Console port: TTL level serial data Alarm port: support 2 alarm information inputs and 1 alarm information output |
| LED Indicator | External indicator, running indicator, port indicator |
| Switch Property | Transmission mode: store and forward MAC address: 8K Packet buffer size: 1Mbit Backplane bandwidth: 7.6G Switch time delay: <10μs |
| Power Requirement | 3.3VDC(±5%) |
| Power Consumption | Power consumption: ＜3W |
| Environmental Limit | Operating temperature: -40~75℃ Storage temperature: -40~85℃ Relative humidity: 5%～95%(no condensation) |
| Physical Characteristic | Installation: embedded mounting (with heat-conducting fin, can be equipped with heatsink) Dimension (W x H x D): 72mm×8.9mm×54mm |
| Certification | CE, FCC, RoHS |
| Warranty | 5 years |
| Available Models | Gigabit Port (Optional Fiber/Copper Port) | 100M Port (Optional Fiber/Copper Port)) | Power Supply |
| IEM7110-3G | 3 | 7 | 3.3VDC (±5%) |
