Серия IES5024
Монтаж в стойку 1U

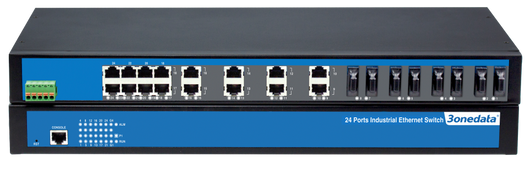

24- портовый 100-мегабитный управляемый промышленный коммутатор Ethernet 2-го уровня
- Поддержка максимум 2 4 дополнительное волокно и медные порты Ethernet
- Принятие запатентованной технологии SW-Ring, поддержка одинарного кольца, соединительного кольца, цепного кольца, двойного кольца самонаведения сетевая функция, время автоматического восстановления после сбоя сети < 20 мс
- Поддержка опционального одинарного/двойного входа питания переменного/постоянного тока: 100 ~ 240 В переменного / постоянного тока , 24 В постоянного тока или 48 В постоянного тока
- Поддержка широкого диапазона рабочих температур от -40 до 75 ℃
IES5024 series are 24-port 100M layer 2 managed industrial Ethernet switches. This series include multi types of products and provide full 100M copper ports, 100M fiber/copper ports, supports single/dual power supply, AC/DC power supply. It adopts rack mounting to meet the requirements of different application scenes.
Network management system supports various network protocols and industrial standards, such as STP/RSTP, 802.1Q VLAN, QoS, IGMP Static Multicast, Port Trunking, Port Mirroring, etc. It also possesses complete management functions, including Port Configuration, Port Statistics, Access Control, Network Diagnosis, Rapid Configuration, Online Upgrading and so on, and supports CLI, WEB, Telnet, SNMP and other access methods. It can provide users with good experience with friendly design of network management system interface, simple and convenient operation.
This series of products conform to FCC, CE standard and are designed in accordance with industrial grade 4 standard. RST button can instantly restore factory defaults. When power supply or port occurs link failure, ALARM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, rail transit, smart city, safety city, new energy, intelligent manufacturing and other industrial fields.
| Standard & Protocol | IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3x for Flow Control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1Q for VLAN IEEE 802.1p for Class of Service | |||||||||||||||||||||
| Management | Console/Telnet/WEB Management, SNMP v1/v2c Centralized Management of Equipment, RMON, Port Mirroring, QoS, DHCP Server, DHCP Client, File Management, Port Statistics | |||||||||||||||||||||
| Security | Classification of User Permissions, Mac Port Lock, E-mail Alarm, Relay Alarm | |||||||||||||||||||||
| Switch Function | 802.1Q Vlan, Static Port Aggregation, Bandwidth Management, Flow Control | |||||||||||||||||||||
| Unicast / Multicast | Static Multicast, GMRP, IGMP-Snooping | |||||||||||||||||||||
| Redundancy Protocol | SW-Ring, STP/RSTP | |||||||||||||||||||||
| Time Management | SNTP | |||||||||||||||||||||
| Interface | Copper port: 10/100Base-T(X) RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning Fiber port: 100Base-FX Console port: CLI command line management port (RS-232), RJ45 Alarm port: 2-pin 5.08mm pitch terminal blocks, support 1 relay alarm output, current carrying capacity is 5A@30VDC or 10A@125VAC | |||||||||||||||||||||
| LED Indicator | Running Indicator, Port Indicator, Power Supply Indicator, Alarm Indicator | |||||||||||||||||||||
| Switch Property | Transmission mode: store and forward MAC address: 8K Packet buffer size: 3M Backplane bandwidth: 12.8G Switch time delay: < 10μs | |||||||||||||||||||||
| Power Requirement | Supports single/dual power supply, DC/AC power supply: 1. AC: 100~240VAC/DC 2. DC: 24VDC (12-36VDC), nonpolarity 3. DC: 48VDC (36-48VDC), nonpolarity | |||||||||||||||||||||
| Power Consumption |
| |||||||||||||||||||||
| Environmental Limit | Operating temperature range: -40~75℃ Storage temperature range: -40~85℃ Relative humidity: 5%～95%（no condensation） | |||||||||||||||||||||
| Physical Characteristic | Housing: IP30 protection, metal Installation: 19 inches rack mounting Dimension (W x H x D): 441.6mm×44.6mm×207.9mm | |||||||||||||||||||||
| Industrial Standard | IEC61000-4-2 (ESD), Level 4 l Air discharge: ±15kV l Contact discharge: ±8kV
IEC61000-4-4 (EFT), Level 4 l Power supply: ±4kV l Ethernet interface: ±2kV l Relay: ±4kV
IEC61000-4-5 (Surge), Level 4 ● Power supply: common mode ±4kV, differential mode ±2kV ● Ethernet interface: ±4kV
Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 | |||||||||||||||||||||
| Certification | CE, FCC, RoHS | |||||||||||||||||||||
| Warranty | 5 years |
| Available Models | 100M Fiber Port | 100M Copper Port | Power Supply (AC/DC) |
| IES5024 | — | 24 | 100~240VAC/DC 24VDC (12~36VDC) 48VDC (36~48VDC) |
| IES5024-2F | 2 | 22 | |
| IES5024-4F | 4 | 20 | |
| IES5024-8F | 8 | 16 | |
| IES5024-12F | 12 | 12 | |
| IES5024-16F | 16 | 8 |
