Серия IMF204-2F
Настенный монтаж

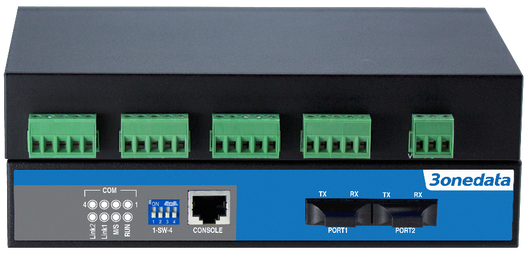

4 порта RS-485 и 2 порта Fiber Неуправляемый кольцевой сетевой последовательный модем для оптоволокна
- Поддержка 4 последовательных портов RS-485 и 2 оптоволоконных портов.
- Оптоволоконный порт поддерживает функцию кольцевой сети, а время автоматического восстановления после сбоя сети составляет <20 мс.
- Поддержка скорости линии 0-115200 бит/с и неблокируемой связи
- Поддержка широкого диапазона напряжений 12~48 В постоянного тока или 100~240 В переменного тока (опционально)
IMF204-2F series are high-performance unmanaged ring network serial to fiber MODEM designed for industrial application. This product supports point-to-point dual fiber port backup, or ring network redundancy of multiple devices. This product provides 4 RS-485 serial ports and 2 fiber ports. It adopts wall mounting to meet the requirements of different application scenes.
DIP switch can implement master and slave configuration of the device. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in electricity distribution automation, industrial automation, transportation, telecommunication and other fields.
| Fiber interface | Interface quantity: 2 (support ring network redundancy) Interface form: SC/ST/FC (optional) Transmission speed: 100Mbps Transmission distance: l multimode: 2km l Single mode: 20km
Transmission wavelength: l multimode: 1310nm l single mode: 1310nm or 1550nm | |||||||||
| Serial Port | Standard: EIA RS-485 Quantity of serial port: 4 RS-485 serial port RS-485 signal: D+, D-, GND Baud rate: 0~115200bps Data bit: 5bit, 6bit, 7bit, 8bit Parity bit: None, Even, Odd, Space, Mark Stop bit: 1bit, 1.5bit, 2bit Interface form: 5-pin 5.08mm pitch terminal blocks Directional control: RS-485 direction adopts Automatic Data Direction Control technology Load capacity: RS-485/422 supports 32 points polling (customizable 128 points) Interface protection: 1.5kVAC isolation protection | |||||||||
| Indicator | Running status indicator, master/slave device status indicator, fiber port indicator, serial port indicator | |||||||||
| Power supply | IMF204-2F-4DI(RS-485)-P(12~48VDC) l 12~48VDC, 3-pin 5.08mm pitch terminal blocks l Power supply nonpolarity
IMF204-2F-4DI(RS-485)-P(100~240VAC) l 100~240VAC, 3-pin 5.08mm pitch terminal blocks | |||||||||
| Power consumption |
| |||||||||
| Working Environment | Operating temperature: -10~70℃ Storage temperature: -10~70℃ Relative humidity: 5%～95% (no condensation) | |||||||||
| Physical Characteristic | Housing: IP30 protection, metal Installation: wall mounting Dimension (W x H x D): 200mm×35mm×120mm Weight: 603g | |||||||||
| Authentication | CE, FCC, RoHS | |||||||||
| Warranty | 3 years |
| Available Models | Fiber Port | RS-485 | Power Supply |
| IMF204-2F-4DI(RS-485)-P(12~48VDC) | 2 | 4 | 12~48VDC |
| IMF204-2F-4DI(RS-485)-P(100~240VAC) | 2 | 4 | 100~240VAC |
